PE110 - Stiff Expansion Joint Filler Foam

Foam Sales' PE110 Polyethylene Foam Sheets and Expansion Joint Filler Strips are hard, high density, semi-rigid PE foam products. They are used in expansion joints where a firmer material than the traditional IXPE30 roll product is required. They are used in road and rail bridge construction, adjacent to formwork and retaining walls, between concrete slabs, and anywhere that a firm expansion joint foam is required.

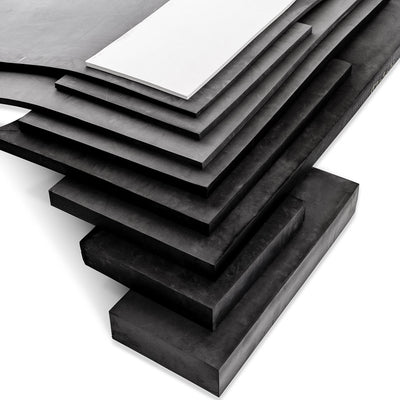

The Sheet product comes in sheet size 1850x1200mm, in 10mm and 20mm thickness. (Other thicknesses are available on request). This expansion joint filler foam is also available in strips 1850mm long at various widths as listed above. Enquire for custom sizes. Please note that these strip  products do not come with a zip strip.

Foam Sales' Stiff Joint Filler Foam is a chemically cross linked and closed cell product that is impermeable to water and moisture-intrusion, to fungi, bacteria, and to air. It is stable and chemically inert in the presence of acids, alkalies, and common chemicals and solvents. Service life in a concealed and chemically neutral environment is expected to be in excess of 100 years.

These Sheets and Strips are semi-rigid, and have moderate to good recovery after repeated periods of short-term compression. They are not brittle, so they won't crack or break, do not rip or splinter, and are dust free. They can be cut with a utility knife, or a saw, and can be nailed or fixed into position with caulking and contact adhesives. See our Data Sheet for Technical Information.

See our Standard Range of Expansion Joint Foam Rolls.

For an alternative selection of closed cell foam sheets compare our ranges of PE30 Sheets, PE45 Sheets, and  EVA Foam Sheets. EVA Sheets are very similar in characteristics to PE sheets, but with higher rebound characteristics. They generally can be used as an alternative.For more general information on Closed Cell Foam Products see our Information Page, and for specific information on Foam Sales' PE and EVA Ranges see our Data Sheets Page.
